Thermal Ribbons

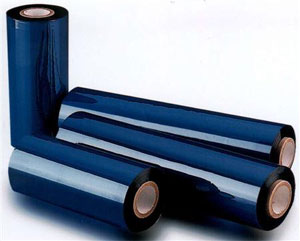

WAX BARCODE RIBBON
| DESCRIPTION | SPECIFICATION |
| INK MATERIAL | WAX |
| COLOR | BLACK |
| BASE FILM | POLYESTER FILM |
| HEAT RESISTANCE COATING | SILICON BASE |
| BASE FILM THICKNESS | 4.5u |
| TOTAL THICKNESS | 8.0u +- 0.5u |
| PRINT DENSITY | >=1.9 |
| PRINT SPEED | 2 ~ 12IPS |
| PRINT SENSITIVITY | 10 |
| HEAT RESISTANCE | 5 |
| SCRATCH RESISTANCE | 4 |
| SOLVENT RESISTANCE | 4 |
| LABEL ADAPTABILITY | 10 |
| USE ENVIRONMENT | 5° C ~ 35° C , 20% ~ 85% RH |
| STORAGE ENVIRONMENT | -5° ~ 40° C, 20% ~ 85% RH |
| MODEL | CHARACTERISTICS | RECOMMEND APPLICATIONS | RECOMMEND SUBSTRATES |
| WAX | Clear printing effect, High universal property reasonable price | Retail label, Medicine labels, Ticket Printing, etc | Common chrome paper, standard chrome paper,glossy paper, ticket, tag, etc |
WAX / RESIN BARCODE RIBBON
| DESCRIPTION | SPECIFICATION |
| INK MATERIAL | WAX |
| COLOR | BLACK |
| BASE FILM | POLYESTER FILM |
| HEAT RESISTANCE COATING | SILICON BASE |
| BASE FILM THICKNESS | 4.5u |
| TOTAL THICKNESS | 8.0u +- 0.5u |
| PRINT DENSITY | >=1.5 |
| PRINT SPEED | 2 ~ 12IPS |
| PRINT SENSITIVITY | 8.5 |
| HEAT RESISTANCE | 6 |
| SCRATCH RESISTANCE | 8 |
| SOLVENT RESISTANCE | 7 |
| LABEL ADAPTABILITY | 10 |
| USE ENVIRONMENT | 5° C ~ 35° C , 20% ~ 85% RH |
| STORAGE ENVIRONMENT | -5° ~ 40° C, 20% ~ 85% RH |
| MODEL | CHARACTERISTICS | RECOMMEND APPLICATIONS | RECOMMEND SUBSTRATES |
| WAX RESIN | Clear printing effect,Superior scratch resistance, High blackness,Printing head protection, Low price | Common purpose labels, Shipping & receiving label, Inventory labels & Bin labels, Pharmaceutical labels, Product identification labels, Textile & apparel application, Automotive labels, Hazardous material labels. | Chrome Paper, PEP Film, PP Film, PE film, etc |

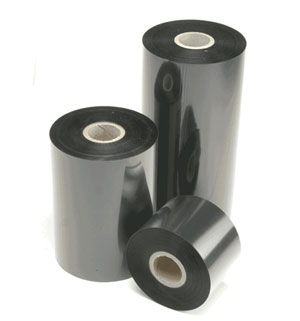

RESIN BARCODE RIBBON
| DESCRIPTION | SPECIFICATION |
| INK MATERIAL | WAX |
| COLOR | BLACK |
| BASE FILM | POLYESTER FILM |
| HEAT RESISTANCE COATING | SILICON BASE |
| BASE FILM THICKNESS | 4.5u |
| TOTAL THICKNESS | 6.5u +- 0.5u |
| PRINT DENSITY | >=1.6 |
| PRINT SPEED | 2 ~ 12IPS |
| PRINT SENSITIVITY | 6 |
| HEAT RESISTANCE | 8 |
| SCRATCH RESISTANCE | 9 |
| SOLVENT RESISTANCE | 9 |
| LABEL ADAPTABILITY | 7 |
| USE ENVIRONMENT | 5° C ~ 35° C , 20% ~ 85% RH |
| STORAGE ENVIRONMENT | -5° ~ 40° C, 20% ~ 85% RH |
| MODEL | CHARACTERISTICS | RECOMMEND APPLICATIONS | RECOMMEND SUBSTRATES |
| RESIN | Abrasion Resistance Solvent Resistance Excellent blackness & high definition,High sensitivity | Motor car labels, Chemical drum labels, Laboratory labels, Electronic Component Labels, Health Care labels, Shrink wrap labels, Tracking labels, Product Identification labels, Textile & Apparel application. | Synthetic Paper, Film (PET, PVC) |
